Designing solar farms and solar canopies with Energy3D

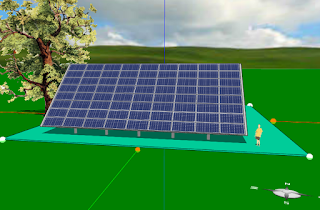

Fig. 1: Single rack
Many solar facilities use racking systems to hold and move arrays of solar panels. Support of racks is now available in our Energy3D software. This new feature allows users to design many different kinds of solar farm, solar park, and solar canopy, ranging from small scale (a few dozen) to large scale (a few thousand).

Fig. 2: Multiple racks
Mini solar stations often use a single rack to hold an array of solar panels (Figure 1). This may be the best option when we cannot install solar panels on the building's roof. You probably have seen this kind of setup at some nature centers where the buildings are often shadowed by surrounding trees.

If you have more space, you probably can install multiple racks (Figure 2), especially when you are considering using altazimuth dual-axis solar trackers to drive them. This configuration is also seen in some large photovoltaic power stations.

Fig. 3: Rack arrays
Larger solar farms typically use arrays of long racks (Figure 3). Each rack can be driven by a horizontal single-axis tracker. Using taller racks usually requires larger inter-rack spacing, which may be an advantage as it allows maintenance trucks to drive through. In a recent experiment, SunPower experimented with how to grow crops or raise animals in the inter-rack space with their Oasis 3.0 system. So arrays of taller racks may be desirable if you want to combine green energy with green agriculture.

Fig. 4: Solar canopy above a parking lot
If you raise the height of a rack, it becomes a so-called solar canopy that provides shading for human activities like the green canopies of trees do. The most common type of solar canopy converts parking lots into power stations and provides shelters from the sun for cars in the summer (Figure 4).

Designing solar canopies for schools' parking lots may be a great engineering project for students to undertake. This is being integrated into our Solarize Your School Project. In fact, Figure 4  shows a real project in Natick High School in Massachusetts. The hypothetical design has more than 1,500 solar panels (each of them has the size of 0.99 x 1.96 m) and costs over a million dollars.
